NARROW BEAM
RFID ANTENNA
Focused RF beam design for controlled coverage, reduced interference, and high-accuracy RFID identification.
What is a Narrow Beam RFID Antenna?
A narrow beam RFID antenna focuses RF energy into a concentrated direction to improve reading precision and reduce interference in surrounding areas.
Directional Beam
Focused signal for precise targeting
Low Interference
Reduces unwanted tag reading
Stable Performance
Consistent signal in defined zones
High Accuracy
Improved reading control in dense environments
our Narrow Beam Antenna Products
Choose the right narrow beam antenna based on beam width, gain, and application requirements.

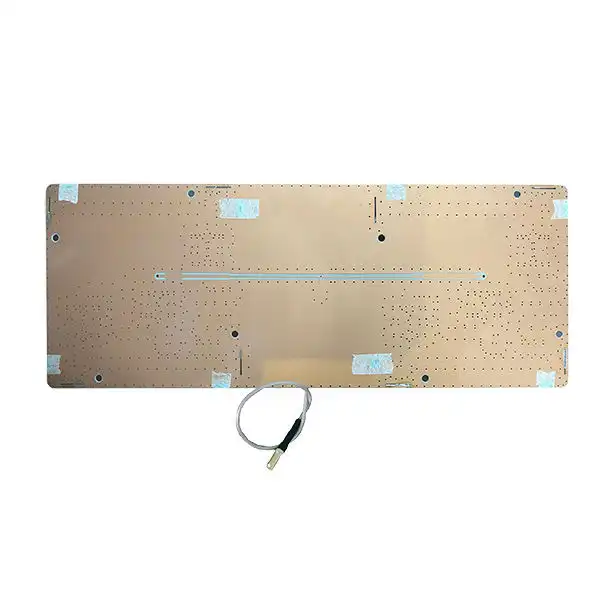

product name
Beam Width： Hor:77° Ver:48°
Gain：8dbi
size：300*160*10mm
product name
Beam Width： Hor:77° Ver:48°
Gain：8dbi
size：300*160*10mm
product name
Beam Width： Hor:77° Ver:48°
Gain：8dbi
size：300*160*10mm
More About Narrow Beam RFID Antennas
Narrow beam RFID antennas are designed for applications requiring precise RF direction control, reduced interference, and stable identification in defined zones.

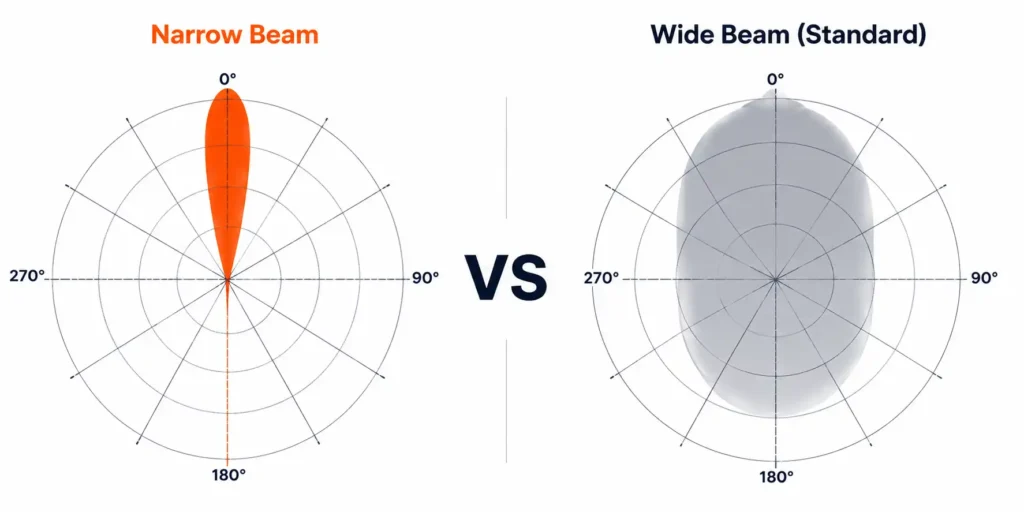

Beam Pattern Comparison
Narrow beam antennas are ideal for controlled zones, while wide beam antennas are suitable for general coverage applications.
Narrow Beam RFID Antenna Applications
Conveyor Tracking Systems
Enables precise tag detection on production lines and automated sorting systems.
Industrial Automation Systems
Ensures stable RFID detection in industrial environments requiring directional control.
Access Control & Gate Systems
Used in controlled entry points to ensure accurate tag reading within defined directional zones.
Warehouse Zone Identification
Supports zone-based RFID tracking in warehouses with reduced cross-read interference.
Narrow Beam RFID Antenna FAQs
Key technical questions about beam control, installation, and application performance of narrow beam RFID antennas.
Narrower beams improve reading accuracy but reduce coverage area, making them ideal for controlled zones.
When you need directional control, reduced interference, or zone-specific RFID detection.
Yes, by limiting RF spread, they significantly reduce unintended tag detection outside the target area.
It depends on coverage area size, reading distance, and system layout requirements.
Yes, if properly housed, they perform well in outdoor directional tracking applications.
Not always. They improve precision but may not be suitable for wide-area tracking applications.
Need a Custom narrow beam RFID Antenna Solution?
Our engineering team can help you select the right beam width and antenna configuration for your system.
- OEM & ODM Support
- Fast Response within 24 Hours
- Industrial-grade Quality Assurance
